MB-Tech:Perfect Cleaning & Drying Results for any Application in the Electronics and Semi-Conductor Industries
Why MB-tech for all you PCB cleaning and maintenance needs?
All our cleaners are closed loop for zero discharge of any chemistry, rinse or final risne. This will not only cut your operating costs immensely but will help our precious environment.
Our drying technology is one of the best on the market ensuring your product is the driest possible consistently.
Our machines are designed for consitant process control hour after hour, day after day.
Our tracebility option allows for tracking products and operating paraneters.
No production bottle necks waiting for cleaning cycles.
Guaranteed process implementation through us and our partners.

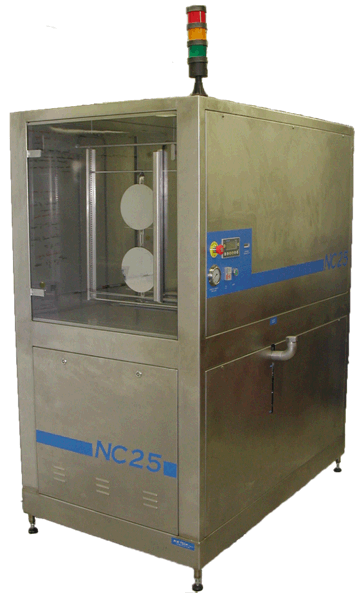

In order to meet your high quality cleaning requirements for misprinted or reflow boards, The PCB Cleaner NC25 is an efficient and innovative solution.
Specially designed to enhance VIGON® MPC® system (Micro Phase Cleaning), PCBs are first immersed in a washing tank where they undergo the combine action of a vertical shaking and a turbulent bubbly air flow that allows reaching a high efficiency level. Boards are then transferred in a DI Water rinsing tank and are finally dried in a vacuum tank. Between each transfer, PCBs go through an air knife in order to limit the fluid exchange from a tank to another. The easy mechanical system confers to this equipment a very high reliability.
The use of an aqueous product (No flash point, low VOC content) that makes it possible to separate the residues, ensures a 100% closed loop cleaning process to meet today’s economic and environmental demands.
Simplicity and Efficiency:

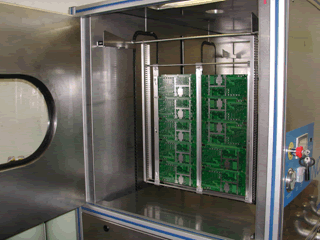

PCB holder frame with quick locking system or based on wave soldering finger
Automatic frame transfer
Process managed by PLC with display and soft keyboard,
Permanent water conductivity control with alarm on rinsing tanks,

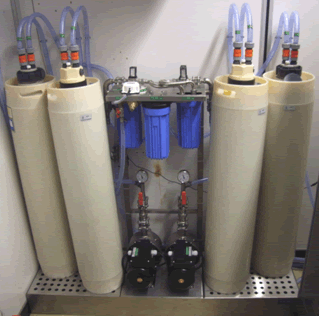

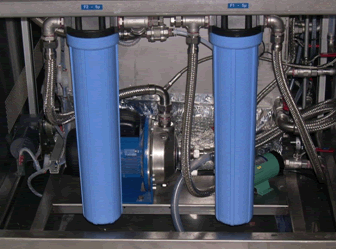

Residues separated by a patented filtering system,
Vacuum drying in aluminum tank with forced convection,
Possibility to load up to 5 frames and to collect them on an unloading conveyor
